LM1-EBL1-01-N2 is a SMD LED produced by Cree. It has a 120-degree beam angle, a size of 3.2 x 2.7 mm, and can be used for indicators, illumination, LCD backlights, automotive applications, and blue color displays.
The Cree LM-EBL-0-N2 is a 120° blue SMD LED (3.2 × 2.7 mm) designed for indicators, LCD back‑lights, automobile lighting and other illumination applications. It features a water‑transparent lens and is available in multiple performance bins for luminous intensity and wavelength.

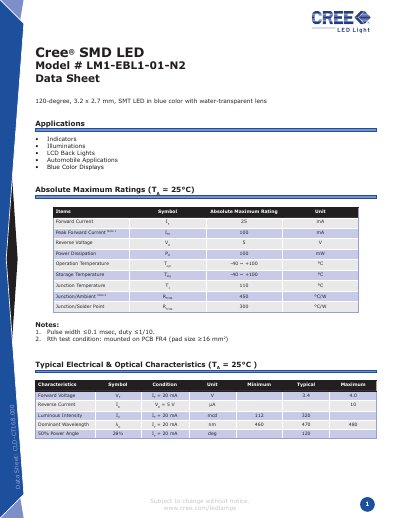

The datasheet lists absolute maximum ratings such as a forward current of 25 mA, peak forward current of 100 mA, reverse voltage of 5 V, and power dissipation of 100 mW. Operating temperature ranges from –40 °C to +100 °C, with a junction temperature limit of 110 °C. Mechanical dimensions, RoHS compliance, binning details, and packaging options are also included. This manual is written in Chinese.
| Forward Current (IF) | 25 mA (max) |
|---|---|
| Peak Forward Current (IFP) | 100 mA |
| Reverse Voltage (VR) | 5 V |
| Power Dissipation (PD) | 100 mW |
| Forward Voltage (VF) at IF=20 mA | 3.4 V – 4.0 V (typical) |
| Luminous Intensity (IV) at IF=20 mA | 112 – 320 mcd (typical) |
| Operating Temperature | -40 °C to +100 °C |
| Junction Temperature (TJ) | 110 °C |
| Thermal Resistance (RthJA) | 450 °C/W |
| Thermal Resistance (RthJS) | 300 °C/W |
The absolute maximum forward current is 25 mA.
Typical forward voltage is between 3.4 V and 4.0 V at IF = 20 mA.
It can operate from –40 °C up to +100 °C.
The LED delivers between 112 mcd and 320 mcd at IF = 20 mA.
