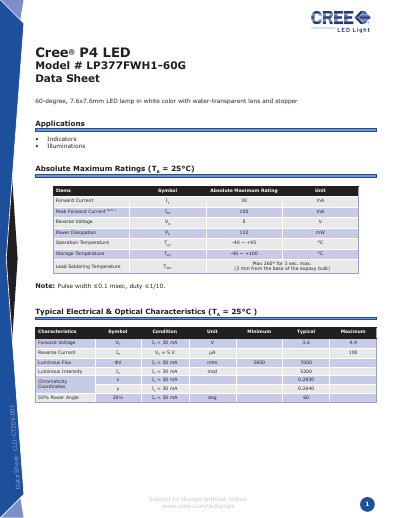

This data sheet provides information on the Cree® P4 LED Model # LP377FWH1-60G, including maximum current, voltage, power, and temperature
The document provides the absolute maximum ratings for the Cree LP377FWH1-60G P4 LED, such as forward current, reverse voltage and power dissipation. It also lists typical electrical and optical characteristics like forward voltage, luminous flux and chromaticity coordinates.
Additional sections describe standard performance bins, mechanical dimensions, packaging options and kit numbers for ordering the LED in various configurations.
| Forward Current (IF) | 30 mA |
|---|---|
| Peak Forward Current (IFP) | 100 mA |
| Reverse Voltage (VR) | 5 V |
| Power Dissipation (PD) | 132 mW |
| Operating Temperature (Topr) | -40 °C to +95 °C |
| Luminous Flux (ΦV) | 3850 – 7000 mlm (typical) |
| Forward Voltage (VF) | 3.6 – 4.4 V (typical) |
The absolute maximum forward current is 30 mA.
The LED is rated for a reverse voltage of 5 V.
The LED can operate from –40 °C up to +95 °C.
