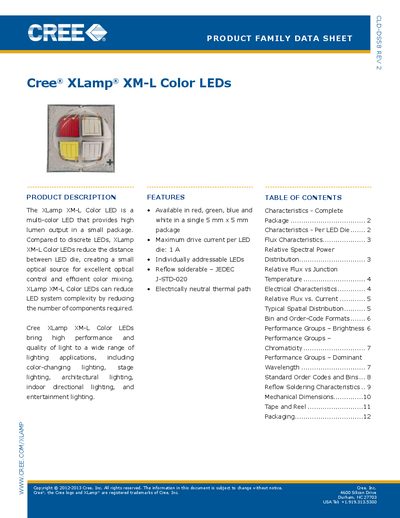

This datasheet details the specifications, electrical and optical characteristics, performance groups, order codes, and mechanical dimensions for the Cree…
The Cree XLamp XM-L Color LED is a high-performance, multi-color light source available in red, green, blue, and white within a single 5 mm x 5 mm package. This design reduces system complexity by minimizing component count while providing excellent optical control and efficient color mixing compared to discrete LEDs.
| Package Size | 5 mm x 5 mm |
|---|---|
| Maximum Drive Current per LED die | 1 A |
| Thermal resistance, junction to solder point | 3.5 °C/W |
| Viewing angle (FWHM) | 130 degrees |
| ESD withstand voltage (HBM per Mil-Std-883D) | 8000 V |
| LED junction temperature maximum | 150 °C |
The LEDs are available in red, green, blue, and white.
Yes, it is reflow solderable according to JEDEC J-STD-020 standards.
The maximum drive current per LED die is 1 A.
