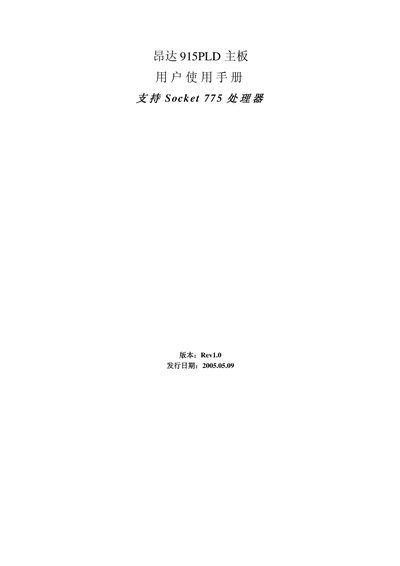

Aonga 915PLD motherboard user manual, introduces the motherboard packaging instructions, system motherboard introduction, motherboard bitmap and I/O interface, motherboard installation and setting, BIOS setup, etc.
The ONDA 915PLD motherboard manual provides step‑by‑step instructions for unpacking, installing the CPU, memory, storage devices and expansion cards. It also details the layout of the board, I/O connectors, and required jumpers.
Additional sections cover BIOS configuration, driver installation, and the six‑channel audio system, with troubleshooting tips and a LED debug guide for diagnosing hardware errors. This manual is written in Chinese.
| Form factor | ATX, 305 mm × 218 mm |
|---|---|
| CPU socket | Socket 775 LGA775 |
| Memory slots | 2 × 184‑pin DDR slots, up to 2 GB |
| Supported memory | DDR333/400 MHz, dual‑channel |
| Maximum memory | 2 GB DDR |
| Storage interfaces | 1 IDE channel, 4 Serial ATA ports |
| PCI Express slots | 1 × PCIe x16, 1 × PCIe x1 |
| USB ports | 8 × USB 2.0 |
| LAN | Optional 10/100 Mbps RJ‑45 |
| Audio | 6‑channel AC97 v2.2 |
It uses a Socket 775 LGA775 processor socket.
The board has two 184‑pin DDR slots supporting up to 2 GB of DDR memory.
It provides eight USB 2.0 ports.
An optional 10/100 Mbps RJ‑45 LAN port is integrated on the board.
