The P4GL3/P4GV motherboard is a high-integration, highly compatible, and cost-effective M-ATX system platform. It supports Intel Pentium 4 processors and features the Intel 82845GL/GV and 82801DB chipsets. It supports DDR memory and multiple hard drive transfer modes, and has abundant expansion slots and interface functions.
This manual introduces the ONDA P4GL3/P4GV motherboard, detailing its Intel 82845GL/GV and 82801DB chipset, M‑ATX form factor, and supported Intel Pentium 4 processors. It lists the board’s components, including CPU socket, memory slots, expansion slots, USB ports, audio codec, and power connectors.

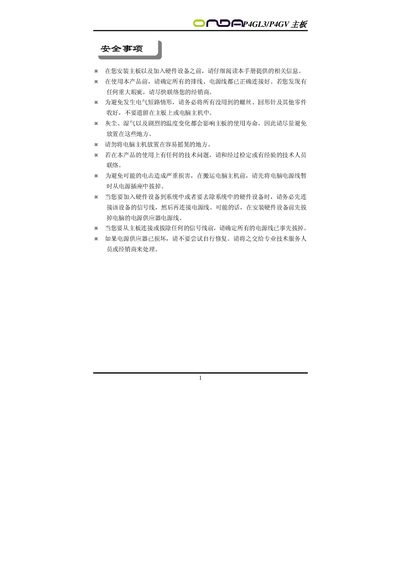

The guide walks users through safe handling, packaging inspection, CPU and memory installation, expansion card mounting, and audio system configuration. It also covers BIOS setup, power management, and troubleshooting tips to ensure reliable operation. This manual is written in Chinese.
| Chipset | Intel 82845GL/GV and Intel 82801DB |
|---|---|
| CPU Socket | Socket‑478 |
| Supported CPUs | Intel Pentium 4 (Northwood core) and Celeron |
| Memory Slots | 2 × 184‑pin DDR DIMM |
| Memory Type | DDR266/333 MHz |
| Expansion Slots | 3 × 32‑bit PCI |
| USB Ports | 6 × USB 2.0 (up to 480 Mbit/s) |
| Audio Codec | AC97 v2.2, 2‑ or 6‑channel |
| Power Interface | ATX connector, ACPI 1.0b, APM 1.2 |
| BIOS Features | Plug‑and‑play support for peripherals |
