P4GV motherboard uses Intel 82845GV and 82801DB chipsets, providing users with a highly integrated, compatible, cost-effective M-ATX system platform with stable performance, reasonable price and suitable for high-end commercial use, home entertainment.

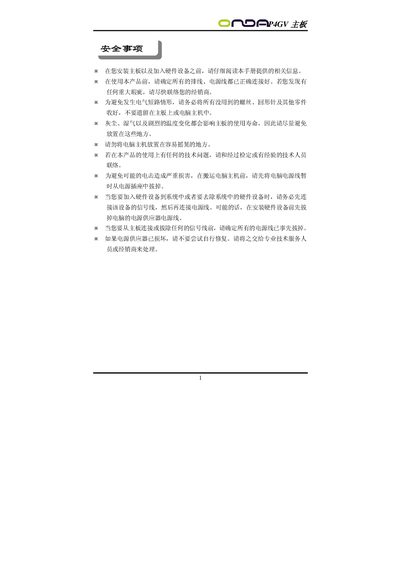

This manual provides safety guidelines, packaging contents, and an overview of the ONDA P4GY motherboard. It describes the Intel 82845GY/82801DB chipset, supported CPUs, memory types, and expansion slots.
Detailed sections cover the motherboard layout, I/O ports, installation steps, BIOS jumper settings, audio configuration, and USB/ATX power specifications, helping users correctly assemble and configure the system. This manual is written in Chinese.
| Chipset | Intel 82845GY and 82801DB |
|---|---|
| CPU Socket | Socket 478 |
| Supported CPU | Intel Pentium 4 (Northwood) and Celeron CPUs |
| Front Side Bus | 400/533 MHz |
| PCI Slots | 3 × 32‑bit PCI slots |
| Audio | AC97.2 compliant, 2‑ or 6‑channel optional |
| USB | USB 2.0, up to 480 Mbit/s |
| Power Connector | ATX power connector, ACPI 1.0b and APH 1.2 compliant |
It provides three 32‑bit PCI expansion slots.
The board follows the AC97.2 audio specification and can operate in 2‑ or 6‑channel mode.
