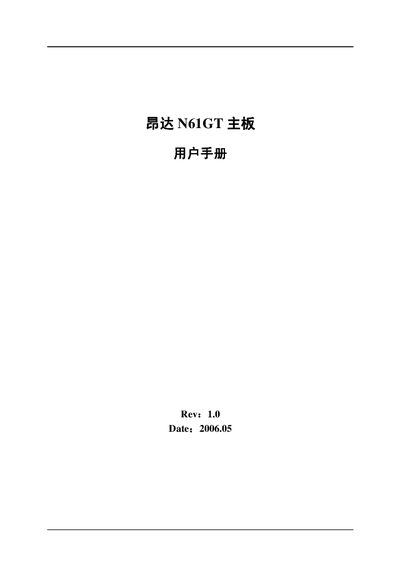

This manual mainly introduces the functions and features of the Onda N61GT motherboard and its usage methods.
This manual covers everything needed to set up the ONDA N61GT motherboard, including packaging verification, hardware layout, and step‑by‑step installation procedures. It also details BIOS configuration options and driver installation guidance.
Additional sections describe connector pinouts, fan installation, and troubleshooting tips, helping users configure CPU, memory, storage, and peripheral devices correctly. This manual is written in Chinese.
| Chipset | NVIDIA C51G + MCP51 |
|---|---|
| CPU Socket | AM2 |
| Supported CPUs | Athlon 64X2, Athlon 64, Sempron (AM2) |
| Memory Types | DDR2 400/533/667/800 |
| SATA Interface | SATA2 300 M/s |
| USB Ports | 8 × USB 2.0 (compatible with USB 1.1) |
| Expansion Slots | 1 × PCI‑Express x16, 1 × PCI‑Express x1, 2 × PCI 2.2 |
| Form Factor | Micro‑ATX |
Press the DEL key after powering on to enter the CMOS setup.
The board provides eight USB ports that support USB 2.0 devices.
It uses an AM2 processor socket for AMD AM2 CPUs.
