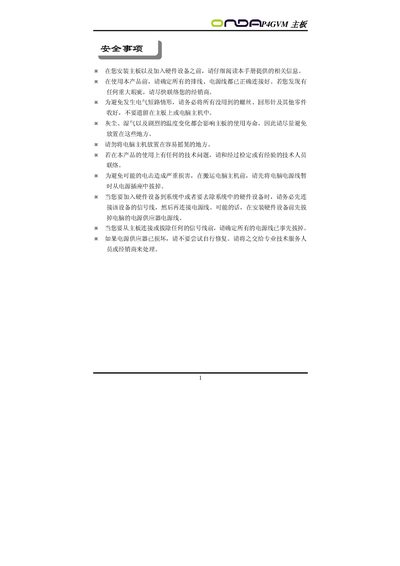

The manual begins with safety precautions and packaging information, reminding users to check for missing parts, avoid static discharge, and ensure all power and signal cables are correctly connected before installation. It also lists the contents of the box, including the motherboard, IDE cable, floppy cable, driver CD, warranty card, and this user guide.
Subsequent chapters describe the motherboard’s features, such as the Intel 82845GY north‑bridge and 82801DB south‑bridge, MATX size (177 mm × 242 mm), support for Socket 478 Pentium 4 CPUs, DDR266/333 MHz memory, two IDE channels with Ultra DMA 33/66/100, two 32‑bit PCI slots, on‑board 10/100 Mbps LAN, AC97 audio, USB 2.0 (up to 480 Mbit/s), and various I/O ports. Detailed installation procedures, jumper settings, and audio configuration steps are also included. This manual is written in Chinese.
| Form factor | MATX (177 mm × 242 mm) |
|---|---|
| CPU socket | Socket 478 for Intel Pentium 4 |
| Northbridge | Intel 82845GY |
| Southbridge | Intel 82801DB |
| Memory slots | 2 × 184‑pin DDR DIMM slots |
| Supported memory speed | DDR266/333 MHz |
| IDE channels | 2 IDE channels, Ultra DMA 33/66/100 |
| PCI slots | 2 × 32‑bit PCI expansion slots |
| LAN interface | 10/100 Mbps Ethernet (RJ‑45) |
| Audio codec | AC97.2 compliant, 2‑ or 6‑channel |
| USB support | USB 2.0, up to 480 Mbit/s |
The board provides two 32‑bit PCI expansion slots.
It supports DDR memory at 266 MHz or 333 MHz using two 184‑pin DIMM slots.
The on‑board LAN supports both 10 Mbps and 100 Mbps auto‑negotiation.
The audio follows the AC97.2 specification and can operate in 2‑ or 6‑channel mode.
