Onda 848PN motherboard adopts Intel 82848P and 82801EB chipset, providing users with a high integration, compatibility and cost-effective ATX system platform, stable performance and reasonable price, suitable for high-end commercial and family entertainment.
This manual describes the ONDA 848PN ATX motherboard, which uses Intel 82848P and 82801EB chipsets and supports Intel Pentium 4 processors in a Socket‑478. It details the board’s dimensions, memory support, expansion slots, and peripheral interfaces.

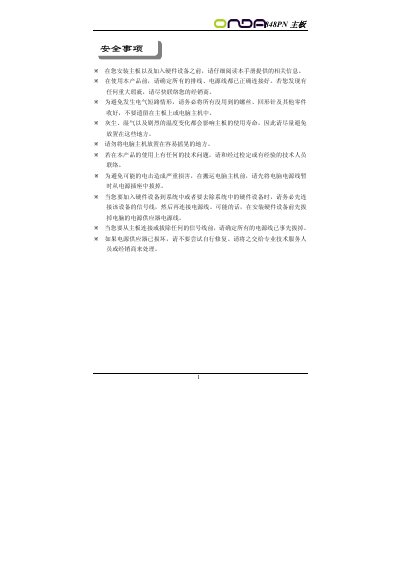

Installation steps cover CPU and memory installation, jumper settings, BIOS configuration, and audio system setup, with safety warnings about static electricity and power handling. This manual is written in Chinese.
| Chipset | Intel 82848P northbridge, Intel 82801EB southbridge |
|---|---|
| CPU Socket | Socket‑478 for Intel Pentium 4 |
| Memory Slots | 2 × 184‑pin DDR DIMM, DDR266/333/400 MHz |
| PCI Expansion Slots | 5 × 32‑bit PCI slots |
| AGP Slot | 1 × AGP 8X (supports 4X/8X) |
| USB Ports | 8 × USB 2.0 (480 Mbit/s) |
| LAN Interface | Optional 10/100 Mbps RJ‑45 |
| Audio Codec | AC97 v2.2, 2‑/6‑channel optional |
It uses a Socket‑478 socket for Intel Pentium 4 processors.
The board provides two 184‑pin DDR DIMM slots supporting DDR266/333/400 MHz memory.
There are five 32‑bit PCI expansion slots.
Yes, it includes eight USB 2.0 ports.
