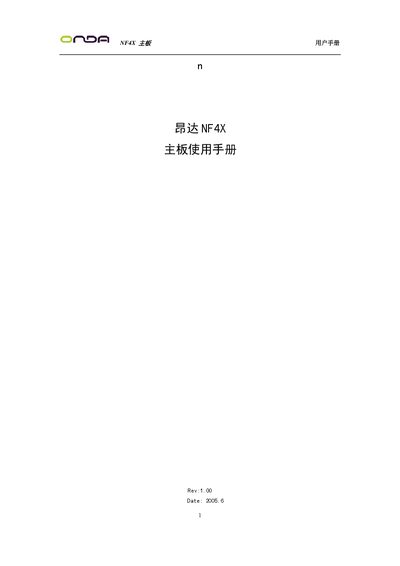

The NF4X Motherboard User Manual is a user manual for the NF4X motherboard, which provides information on the specifications, features, hardware installation, BIOS settings, and driver installation of the motherboard.
This manual describes the Onda NF4X ATX motherboard, its supported AMD Athlon™ 64 / Sempron™ CPUs, DDR‑SDRAM memory, PCI Express slots, NVIDIA RAID and integrated audio and networking features. It also covers safety precautions, static‑free handling and required power‑supply specifications.
The document includes detailed hardware installation instructions, BIOS configuration guidance, driver installation procedures and an appendix for interpreting error messages and POST beep codes. This manual is written in Chinese.
| CPU Socket | Socket 754 |
|---|---|
| Supported CPUs | AMD Athlon TM 64 / Sempron TM |
| Chipset | nVIDIA nForce4-4XTM |
| DDR SDRAM DIMM slots | 3 |
| Maximum system memory | 3 GB |
| PCI Express x16 slots | 1 |
| PCI Express x1 slots | 2 |
| Serial ATA ports | 4 |
It provides four Serial ATA (SATA) ports.
Yes, it supports ACPI specifications and features such as Suspend‑to‑RAM.
