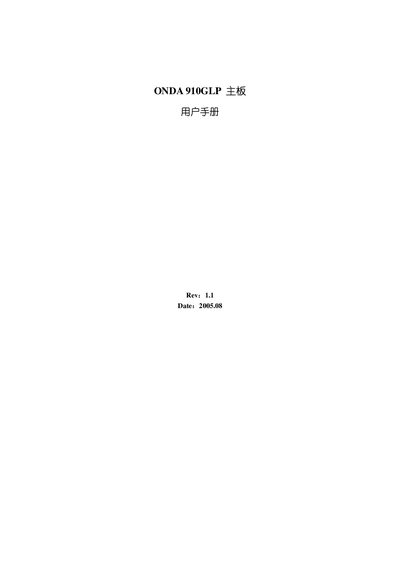

This document is the user manual for ONDA 910GLP motherboard, which introduces the packaging instructions, overview, motherboard layout, installation and setup, BIOS settings, driver installation programs and software installation, sound system applications, etc. The motherboard adopts the latest Intel 910GL chipset design, supports FSB 533MHz Celeron D and Prescott core CPUs, supports dual-channel DDR400/333 storage architecture, integrates Intel Graphics Media Accelerator 900 latest graphics card, and can also be externally connected to support the new generation 16X PCI EXPRESS graphics interface. It integrates the 150M/s Serial ATA new high-speed hard disk interface, onboard six-channel sound effect, provides 2 PCI slots, 1 PCIE 16x (actually running at 4X), and is compatible with most PCIE 16X graphics cards on the market, with strong expandability.
This manual covers the complete packaging contents, a detailed overview of the ONDA 910GLP motherboard, and a full motherboard diagram. It explains the supported CPU, chipset, memory, storage, and peripheral interfaces, as well as power‑management and BIOS features.
Installation instructions guide you through mounting the board, connecting cables, configuring jumpers, and entering the BIOS to load optimized defaults. Additional sections describe driver installation, audio system setup, and troubleshooting contacts. This manual is written in Chinese.
| Chipset | 910GL |
|---|---|
| Integrated Graphics | Intel GMA900 |
| Memory Type | DDR400/333 dual‑channel |
| Maximum Memory | 26B |
| IDE Interface | 1 IDE channel, ATA66/ATA100 |
| Serial ATA Ports | 4 SATA ports |
| USB Ports | 8 USB 2.0 (compatible with USB 1.1) |
| Form Factor | mATX |
Press the DEL key during power‑on to enter the BIOS setup utility.
In the BIOS menu select “Load Optimized Defaults”, save the changes, and exit.
The board provides eight USB ports that support USB 2.0 devices and are backward compatible with USB 1.1.
