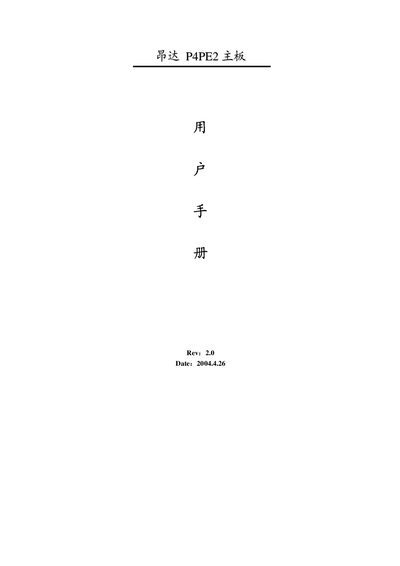

Aonda PP44PPE22 motherboard user manual, mainly introduces the function features, installation steps, BIOS settings and other content
This manual guides users through the complete setup of the ONDA P4PE2 ATX motherboard, covering packaging inspection, hardware installation, BIOS settings, driver installation, and sound system configuration. It also includes safety precautions and troubleshooting tips.
The document details the board’s technical features such as the Intel 82845PE/82801DB chipset, 478‑socket CPU support, dual DDR memory slots (up to 2 GB), AGP 4X slot, six USB 2.0 ports, AC97 audio codec, and ATX power management compliant with ACPI 1.0b and APM 1.2. This manual is written in Chinese.
| Chipset | Intel 82845PE and 82801DB |
|---|---|
| CPU Socket | Socket 478 (supports Intel Pentium 4, Celeron) |
| IDE Interface | 2 IDE channels, Ultra DMA 33/66/100 |
| AGP Slot | 1 AGP 4X slot (1.5 V only) |
| Audio Codec | Integrated AC97, 18‑bit ADC/DAC |
| Power Management | ATX power connector, ACPI 1.0b & APM 1.2 compliant |
Verify that the packaging is complete and undamaged, and that all accessories such as IDE cables, floppy cable, driver CD, manual, and warranty card are present.
It uses a Socket 478 compatible with Intel Pentium 4 and Celeron processors.
The motherboard supports up to 2 GB of DDR memory.
