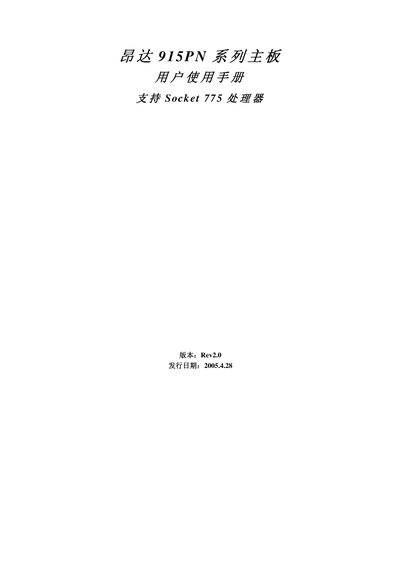

This user manual of ONDA 915PN series motherboard introduces the features and characteristics of the motherboard and the installation and setting methods.
This manual covers everything needed to install and configure the ONDA 915PN ATX motherboard. It includes safety precautions, packaging details, and step‑by‑step guidance for installing the CPU, memory, and expansion cards.
Later sections describe BIOS settings, driver installation, audio system configuration, and troubleshooting tips, helping users get the system up and running quickly and safely. This manual is written in Chinese.
| Chipset | Intel 915P + Intel 82801FB |
|---|---|
| CPU Socket | LGA775 (Socket 775) |
| Form Factor | ATX, 305mm x 233mm |
| Memory Slots | 4 DDR slots, up to 4 GB DDR |
| Supported Memory | DDR333/400 MHz, dual‑channel |
| PCI Express Slots | 1 × PCI‑E x16, 2 × PCI‑E x1 |
| PCI Slots | 2 × PCI expansion slots |
| Audio | 6‑channel AC97.2 compliant |
| USB | USB 2.0, up to 480 Mbit/s |
| LAN | 10/100 M Ethernet (optional) |
Read the manual carefully, ensure all cables and power connections are correct, and disconnect the power before handling the board.
The board provides four DDR memory slots.
It supports a six‑channel AC97.2 audio codec.
It uses an Intel LGA775 (Socket 775) processor socket.
