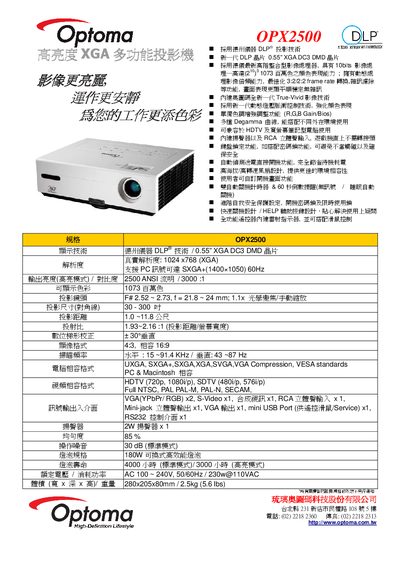

OPTOMA OPX2500 is an XGA multi-function projector that uses Texas Instruments DLP® technology and has a brightness of 2500 ANSI lumens and a contrast ratio of 3000:1. It also supports PC signals up to UXGA+(1400×1050) 60Hz and has a display capability of 1073 million colors.
This manual covers the key specifications of the Optoma OPX2500 DLP projector, including its 1024 × 768 native resolution, 2500 ANSI lumens brightness, 3000:1 contrast ratio, and 1073‑million‑color capability. It also details the lamp options, power requirements, and environmental design such as high‑altitude operation.
Installation and operation guidance are provided, describing projection size (30‑300 inches), throw distance (1.0‑11.8 m), lens focal range, and available input interfaces (VGA, S‑Video, composite, RCA audio, mini‑jack, mini‑USB, RS‑232). Safety features like password lock, auto‑shutdown, and lamp‑life management are also explained. This manual is written in Chinese.
| Resolution | 1024 × 768 (XGA) |
|---|---|
| Brightness (high mode) | 2500 ANSI lumens |
| Contrast Ratio | 3000:1 |
| Color Gamut | 1073 million colors |
| Lamp Power | 180 W |
| Lamp Life (standard mode) | 4000 hours |
| Lamp Life (high‑brightness mode) | 3000 hours |
| Power Supply | AC 100‑240 V, 50/60 Hz, 230 W @ 110 V |
| Throw Ratio | 1.93‑2.16 :1 |
| Projection Size (diagonal) | 30‑300 inches |
| Projection Distance | 1.0‑11.8 m |
| Lens Focal Length | F 2.52‑2.73, f = 21.8‑24 mm |
| Dimensions / Weight | 280 × 205 × 80 mm / 2.5 kg (5.6 lb) |
The lamp lasts up to 4000 hours in standard mode and 3000 hours in high‑brightness mode.
It delivers 2500 ANSI lumens in high‑brightness mode.
It operates from AC 100‑240 V, 50/60 Hz, consuming about 230 W at 110 V.
