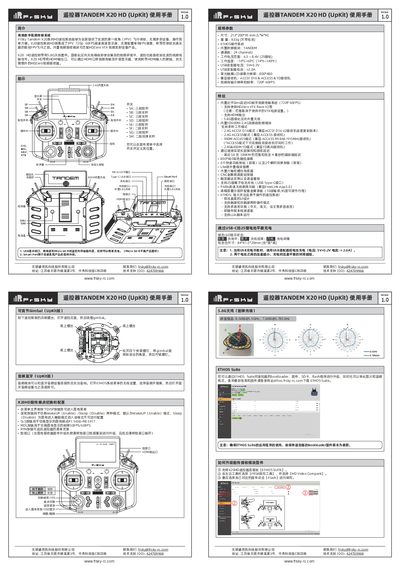

This manual covers the FrSky TANDEM X20 HD (UpKit) remote controller, detailing its features, specifications, and operation instructions for FPV flight control.
The FrSky TANDEM X20 HD (UpKit) is a remote controller integrating a high-definition digital video transmission system. It provides an optimal First Person View (FPV) flying experience with a built-in 720p 60FPS display, HDMI output, and dual-band radio modules (2.4G/900M). The device features a touch screen, voice prompts, vibration feedback, and supports the ETHOS operating system. This manual is written in Chinese.
| Screen Resolution | 800*480 |
|---|---|
| Dimensions (L*W*H) | 213*200*95 mm |
| Weight (without battery) | 833g |
| Operating Voltage Range | 6.5 ~ 8.4V |
| Operating Temperature | -10°C~60°C |
| Number of Channels | 24 channels |
The working voltage range is 6.5 ~ 8.4V, suitable for a 2S lithium battery.
Use a USB adapter to charge via the Type-C interface with a voltage of 5V+0.2V and current greater than 2.0A.
The controller is compatible with ACCST D16, ACCESS, and TD series receivers.
The three available modes are No Pulse (无脉冲), Hold (保持), and Custom (自定义).
