FrSky GPS ADV Sensor Manual, introduces the product's features, installation, and usage methods

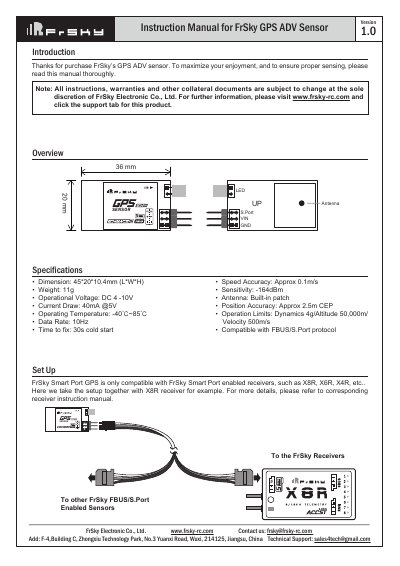

This document is the instruction manual for the FrSky GPS ADV sensor. It details the setup process, specifically noting that the sensor is compatible with FrSky Smart Port enabled receivers such as the X8R, X6R, and X4R. The guide includes an example setup using the X8R receiver and explains how to connect the sensor to the receiver's S.Port, VIN, and GND terminals.
| Dimension | 45*20*10.4mm (L*W*H) |
|---|---|
| Weight | 11g |
| Operational Voltage | DC 4 -10V |
| Current Draw | 40mA @5V |
| Operating Temperature | -40 ℃~85℃ |
| Data Rate | 10Hz |
| Time to fix | 30s cold start |
| Speed Accuracy | Approx 0.1m/s |
| Position Accuracy | Approx 2.5m CEP |
The sensor is only compatible with FrSky Smart Port enabled receivers, such as the X8R, X6R, and X4R.
The GPS should be mounted with Velcro so that the 'UP' side is facing toward the sky.
It feeds variable directional information such as altitude, position, speed, and UTC time.
