FrSky Scout VS600 Mini is a 5.7GHz video transmission device that supports S.Port, inverted S.Port, adjustable RF power, and can be set via gTrans.lua script.
The FrSky Scout VS600 Mini is a compact video transmitter featuring a simple design with switchable power output, operating bands, and channels. It supports S.Port connections and allows parameter adjustment via the gTrans.lua script when paired with a compatible radio transmitter.

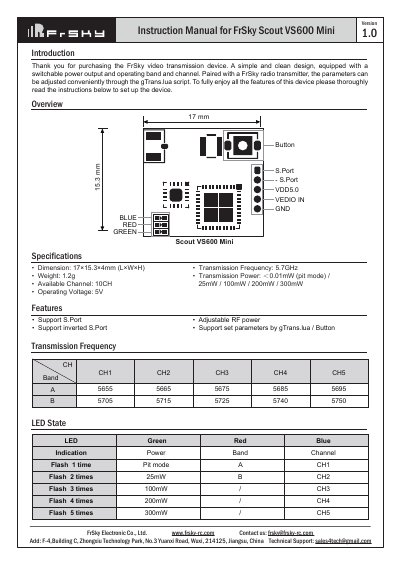

Configuration can be performed manually using the device button or through software scripts. The manual details LED indicators for status, available transmission frequencies (5.7GHz), power levels ranging from Pit mode to 300mW, and channel settings.
| Dimension | 17×15.3×4mm (L×W×H) |
|---|---|
| Weight | 1.2g |
| Operating Voltage | 5V |
| Transmission Frequency | 5.7GHz |
Press the button for (3s) to enter the power/channel/frequency selection mode.
Pit Mode allows the user to power up their video transmitter during race events without interfering with other users.
