FrSky TD SR18 receiver is a dual-band receiver that can work simultaneously at both 900MHz and 2.4GHz frequencies. The receiver is equipped with three antennas, providing multi-directional wide coverage for the remote signal and designed for RC users who want to benefit from resilience and long-range in their radio communications.

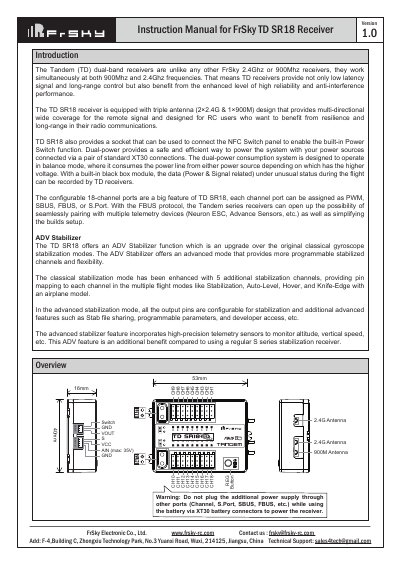

This manual provides instructions for the FrSky TD SR18 Receiver, a dual-band device operating simultaneously at 900MHz and 2.4GHz frequencies. It features a triple antenna design, dual-power system, and an advanced stabilization function with configurable channels.
| Frequency | 900MHz & 2.4GHz |
|---|---|
| Dimension | 53*40*16mm (L*W*H) |
| Weight | 29.1g |
| Operating Voltage | 4-10V |
| Operating Current | ≤195mA |
| Voltage Measurement Range via AIN | 0-35V |
It is an upgrade over classical gyroscope stabilization modes that provides more programmable stabilized channels and flexibility.
Place the device on a flat ground or table, enter the [SRX Calibration] tool, and follow the prompts to calibrate all surfaces.
Yes, the dual-power system uses a pair of standard XT30 connections to power the system safely and efficiently.
