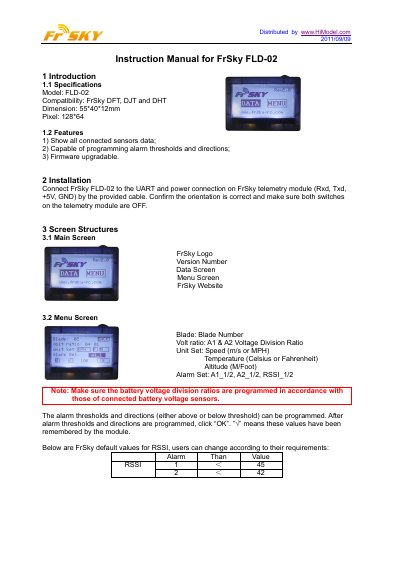

FrSky FLD-02 Flight Display Instruction Manual

FrSky FLD-02 is a display screen that can display all connected sensor data and program alarm thresholds and directions. The firmware is upgradable.

Brand: FrSky
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 2
File format: PDF
File size: 112 KB
Published: 15 October, 2023
Updated: 15 October, 2023
MD5 checksum: 82DFA3C6B61AA8879A8DD5B31662C3A9
PDF: FrSky FLD-02 Flight Display Instruction Manual PDF

About this manual

The FrSky FLD-02 is a flight display unit designed to show data from connected sensors. It features a 128x64 pixel screen and supports firmware upgrades. The device connects to the UART and power connections on FrSky telemetry modules using the provided cable.

What's inside

Introduction
Specifications
Features
Installation
Screen Structures
Menu Screen
Data Screen

Specifications

Model	FLD-02
Compatibility	FrSky DFT, DJT and DHT
Dimension	554012mm
Pixel	128*64

Frequently asked questions

What telemetry modules is the FLD-02 compatible with?

The FLD-02 is compatible with FrSky DFT, DJT, and DHT telemetry modules.

How do I connect the FLD-02 to the telemetry module?

Connect the FLD-02 to the UART and power connection on the telemetry module using the provided cable.

Can the firmware of the FLD-02 be upgraded?

Yes, the device is capable of firmware upgrades.
