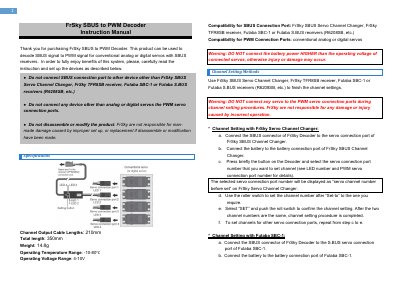

FrSky SBUS to PWM Decoder Instruction Manual is a manual published by FrSky to decode SBUS signal to PWM signal for traditional analog or digital servos.
This document provides instructions for using the FrSky SBUS to PWM Decoder. The device converts SBUS signals into PWM signals for use with conventional analog or digital servos. It is designed to work with specific FrSky and Futaba receiver models.
The manual outlines three distinct methods for setting up channels depending on the connected receiver: the FrSky SBUS Servo Channel Changer, the FrSky TFR8SB receiver, or Futaba S.BUS receivers (such as the R6208SB). Each method includes specific connection steps and button sequences to map decoder ports to servo channels.
| Channel Output Cable Lengths | 210mm |
|---|---|
| Total Cable Length | 350mm |
| Weight | 14.8g |
| Operating Temperature Range | -10-80°C |
| Operating Voltage Range | 4-10V |
It works with FrSky SBUS Servo Channel Changer, FrSky TFR8SB receiver, Futaba SBC-1 or Futaba S.BUS receivers (R6208SB, etc.).
It decodes SBUS signals to PWM signals for conventional analog or digital servos.
The device operates within a voltage range of 4-10V.
