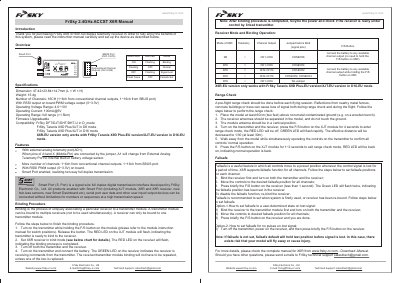

This document is the operating manual for the FrSky X6R receiver, which details the receiver's functions and usage methods.
This manual provides instructions for the FrSky X6R 6/16ch full duplex telemetry receiver. It details the binding procedure between the receiver and transmitter modules, including specific steps for different receiver modes and jumper configurations. The document also explains how to perform pre-flight range checks and configure failsafe positions for all channels.
| Dimension | 47.42*23.84*14.7mm (L x W x H) |
|---|---|
| Weight | 15.4g |
| Number of Channels | 16CH |
| Operating Voltage Range | 4.0~10V |
| Operating Current | 100mA@5V |
| Operating Range | full range (>1.5km) |
Bind the receiver and turn on both devices, move the controls to the desired failsafe position, then press the F/S button on the receiver briefly.
The receiver operates with a voltage range of 4.0 to 10V.
