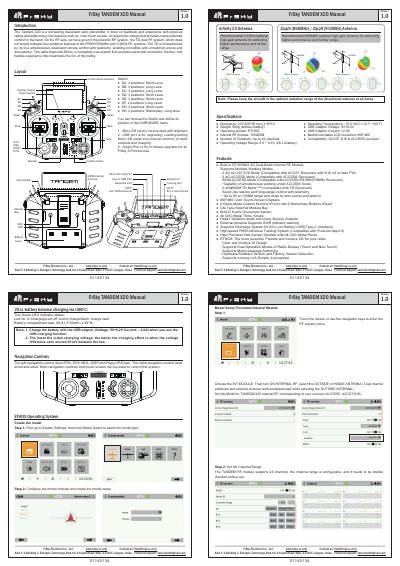

FrSky TANDEM X20 Transmitter User Manual

FrSky TANDEM X20 Manual

Brand: FrSky
Category: Other Electronics
Document type: User Manual
Language: Chinese
Pages: 2
File format: PDF
File size: 4.5 MB
Published: 15 October, 2023
Updated: 15 October, 2023
Model: TANDEM X20
MD5 checksum: 8FDB817532889964FDD32720C90215C2
PDF: FrSky TANDEM X20 Transmitter User Manual PDF

About this manual

This document is the user manual for the FrSky TANDEM X20, a pioneering dual-band radio transmitter featuring a built-in TD 900M/2.4G dual-band internal RF module. It includes detailed instructions on charging the 2S Li-ion battery, setting up the internal module, and configuring the device for various receiver modes such as ACCST D16 and ACCESS. This manual is written in Chinese.

What's inside

Layout Specifications
Model Setup Procedure
ETHOS Operating System
Navigation Controls
Creating a Model
Failsafe Mode
Range Check
Operating Precautions

Specifications

Dimension	21220095 mm (LWH)
Weight	809g (without battery)
Operating Voltage Range	6.5 ~ 8.4V (2S Li-battery)
Operating Temperature	-10℃~60℃ (14℉~140℉)
USB Adaptor Voltage	5V+0.2V
USB Adaptor Current	>2.0A
LCD Resolution	800*480
Number of Channels	Up to 24 channels

Frequently asked questions

What is the recommended charging voltage for the TANDEM X20?

The recommended charging voltage is 5V+0.2V when using the USB charging function.

What are the available failsafe modes for the TANDEM X20?

There are three failsafe modes: No Pulse, Hold, and Custom.

What is the purpose of the Range Check mode?

Range Check mode is used to verify the effective distance of the radio link before flying.
