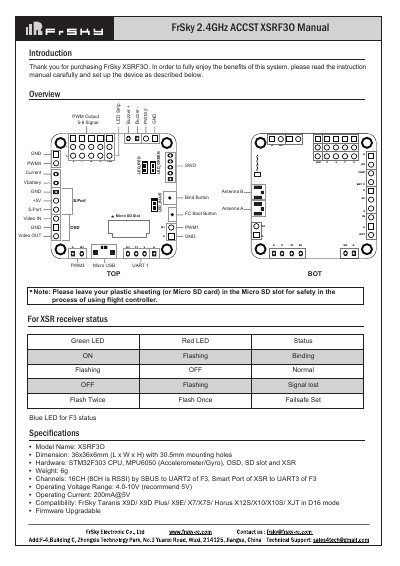

FrSky XSRF3O Flight Controller User Manual

This document is the instruction manual of FrSky XSRF3O, which introduces the functions and features of the product and its usage methods.

Brand: FrSky
Document type: User Manual
Language: English
Pages: 2
File format: PDF
File size: 737 KB
Published: 15 October, 2023
Updated: 15 October, 2023
MD5 checksum: 5A21CB47647E851C865521317393A2FC
PDF: FrSky XSRF3O Flight Controller User Manual PDF

About this manual

The FrSky XSRF3O is a compact flight controller with integrated 2.4GHz ACCST F3 and XSR receiver modules. It features an STM32F303 CPU, MPU6050 sensor, SD card slot, and supports up to 16 channels (8 for RSSI) via SBUS.

What's inside

Introduction
Specifications
Features
Software Configuration of F3
Configuration of XSR receiver

Specifications

Dimension	36x36x6mm (L x W x H) with 30.5mm mounting holes
Weight	6g
Channels	16CH (8CH is RSSI)
Operating Voltage Range	4.0-10V (recommend 5V)
Operating Current	200mA@5V

Frequently asked questions

What is the recommended operating voltage?

The recommended operating voltage is 5V, though it supports a range of 4.0-10V.

Which radios are compatible with the XSRF3O?

Compatible radios include FrSky Taranis X9D, X9D Plus, X9E, X7, X7S, Horus X12S, X10, X10S, and XJT in D16 mode.
