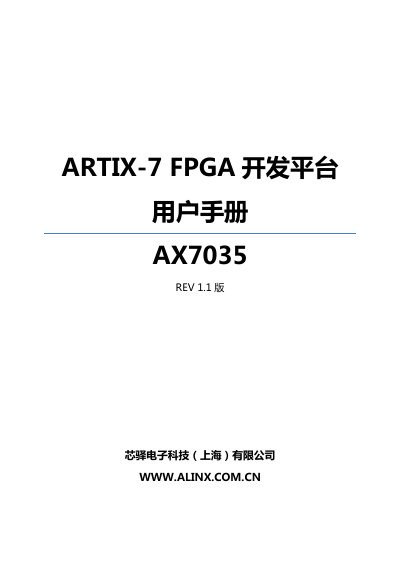

This document is the user manual for the ARTIX-7 FPGA development platform AX7035. It introduces the platform's structure dimensions, power supply, FPGA chip, crystal oscillator, DDR3 memory chip, QSPI Flash, Gigabit Ethernet interface, HDMI interface, USB2.0 communication interface, SD card slot, USB to serial interface, EEPROM, seven-segment display, temperature sensor, expansion ports, JTAG interface, user buttons, and LED lights.
The document introduces the Alinx AX7035 FPGA development platform based on the Xilinx Artix-7 XC7A35T chip. It features a 2Gbit DDR3 SDRAM for high-speed data buffering and a 128Mbit QSPI Flash for configuration storage. The board is designed to support various high-speed data transmission, video processing, and industrial control applications. This manual is written in Chinese.
| FPGA Chip Model | XC7A35T-2FGG484I |
|---|---|
| Logic Cells | 33,280 |
| Block RAM Size | 1,800 kb |
| DDR3 Capacity | 2Gbit (256MB) |
| QSPI Flash Capacity | 128Mbit |
| System Clock Frequency | 50MHz |
| Ethernet Speed | 10/100/1000 Mbps |
| HDMI Output Resolution | 1080P@60Hz |
| Board Dimensions | 130mm x 90mm |
The board uses the Xilinx Artix-7 series FPGA chip, specifically model XC7A35T-2FGG484I.
The development board includes a 2Gbit (256MB) high-speed DDR3 SDRAM.
The HDMI output interface supports a maximum resolution of 1080P at 60Hz.
The development board requires a DC 5V power supply input.
