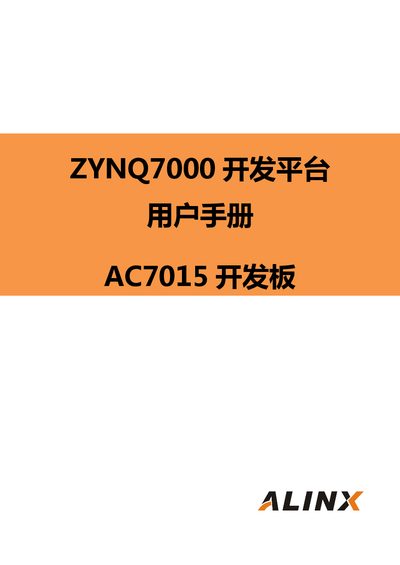

The Alinx AC7015 development board user manual provides hardware overview, specifications, and connection details for the Zynq‑7000 based board.
This manual introduces the AC7015 development board, which is built around a Xilinx Zynq‑7000 series XC7Z015‑2CLG485I chip. The board integrates dual ARM Cortex‑A9 processors, DDR3 memory, QSPI and eMMC flash, and a variety of peripheral interfaces. Its compact 60 mm × 60 mm size makes it suitable for secondary development and prototyping.
The document details each hardware block, including clock configuration, USB‑to‑UART conversion, LED indicators, reset button, JTAG interface, DIP switch settings, power supply design, mechanical layout, and connector pin assignments. Schematics and pin‑out tables are provided for reference. This manual is written in Chinese.
| Processor | Dual ARM Cortex‑A9, up to 766 MHz |
|---|---|
| Zynq Device | XC7Z015‑2CLG485I |
| USB Interfaces | 2 × USB2.0 OTG ports (up to 12 Mbps each) |
| Ethernet | 2 × Gigabit Ethernet (GMII, RGMII, SGMII) |
| CAN Bus | 2 × CAN2.0B interfaces |
| GPIO | 4 × 32‑bit GPIO groups (54 pins as PS‑IO) |
| Board Size | 60 mm × 60 mm |
The board measures 60 mm by 60 mm.
