ALINX AC4075 Core Board User Manual

The ALINX AC4075 Core Board User Manual describes the board’s FPGA, DDR2 memory, SPI flash, power supply, I/O ports and mechanical layout.

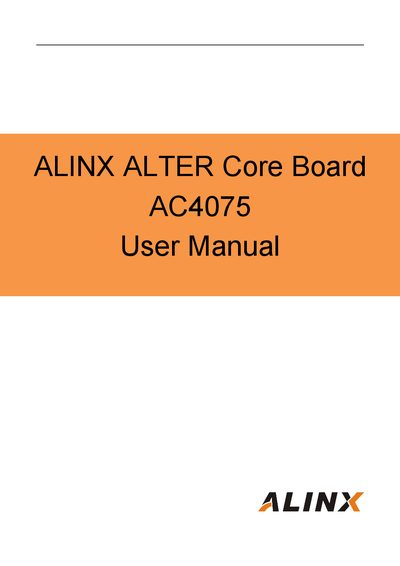

ALINX AC4075 Core Board User Manual - cover page
Brand
Alinx
Category
Other Electronics
Document type
User Manual
Language
English
Pages
19
File format
PDF
File size
1.5 MB
Published
03 October, 2026
Updated
03 October, 2026
MD5 checksum
634A2442AC7F2FBEEC113792C12136D3

About this manual

This manual provides detailed information about the ALINX AC4075 core board, which is based on an Altera Cyclone IV FPGA (EP4CE75F23C8). It covers the board’s components such as DDR2 memory, SPI flash, power supply circuitry, expansion ports, LEDs and mechanical dimensions.

The document includes schematics, pin assignments, and specifications for each subsystem, helping developers integrate the board into video processing or high‑speed data acquisition applications.

What's inside

  • Part 1: AC4075 Core Board
  • Part 2: DDR2 DRAM
  • Part 3: SPI Flash
  • Part 4: FPGA Power Supply
  • Part 5: Expansion Ports
  • Part 6: Power Interface on Core Board
  • Part 7: Crystal Oscillator on Core Board
  • Part 8: LED Light on Core Board
  • Part 9: Structure Diagram

Specifications

FPGA ChipAltera Cyclone IV EP4CE75F23C8
DDR2 Bus Width32‑bit
DDR2 Bandwidthup to 8.5 Gb/s
IO Ports168 IO ports (73 pairs LVDS)
Board Size60 mm × 60 mm
SPI Flash ModelM25P64 64 Mbit
SPI Flash Capacity64 Mbit

Frequently asked questions

What FPGA chip does the AC4075 core board use?

It uses an Altera Cyclone IV EP4CE75F23C8 FPGA.

What is the capacity of the SPI flash on the AC4075 board?

The SPI flash is a 64 Mbit M25P64 device.

How many I/O ports are available on the core board?

The board provides 168 I/O ports, including 73 pairs of LVDS differential lines.
