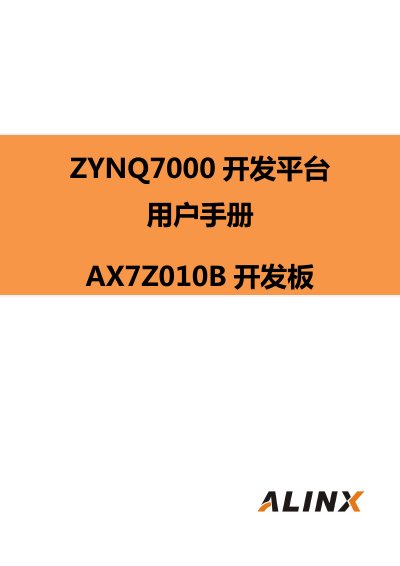

User manual for the Alinx AX7Z010B ZYNQ7000 development board, covering core board, expansion board, and interface specifications.
This manual describes the Alinx AX7Z010B development board based on the Xilinx ZYNQ7000 platform. The system utilizes a core board plus expansion board design, featuring a Xilinx XC7Z010-1CLG400I SoC chip with dual-core ARM Cortex-A9 processors and programmable logic. This manual is written in Chinese.
| SoC Chip Model | XC7Z010-1CLG400I |
|---|---|
| Processor Core | Dual-core ARM Cortex-A9 |
| DDR3 Capacity | 512MB |
| QSPI Flash Capacity | 256Mb |
| Ethernet Interface | 10/100/1000M |
| HDMI Output | 1080P |
| Power Input | DC5V |
| Expansion Port Spacing | 2.54mm |
The power input voltage for the development board is DC5V.
The network interface chip uses the JL2121 industrial grade GPHY chip from Jinglue Semiconductor.
The analog signal voltage input range is 0~10V.
