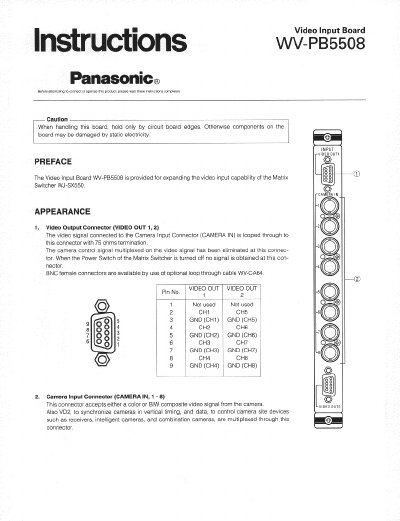

This document provides instructions for the Panasonic WV-PB5508 Video Input Board, which expands the video input capability of the Matrix Switcher WJ-SX550. It details the board's appearance, including video output and camera input connectors, and explains how to set the switches for specific camera inputs.
| Dimensions | 24.5(W) x 265(H) x 260(D) mm |
|---|---|
| Weight | 1.0 lbs. (450g) |
The Video Input Board WV-PB5508 is provided for expanding the video input capability of the Matrix Switcher WJ-SX550.
Installation should be made by qualified service personnel or system installers.
