The WV-Q116 is a bracket designed for mounting the WV-CS954 camera on a suspended ceiling. The bracket is suitable for ceiling boards with a maximum thickness of 40mm and requires a minimum clearance of 210mm. It provides a fall prevention wire to ensure the camera's safety. Follow the precautions and relevant safety codes during installation.

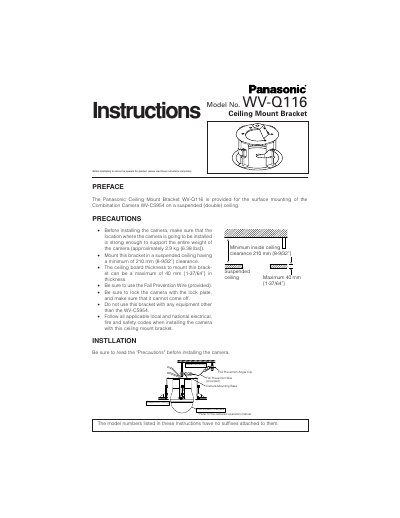

This document provides installation instructions for the Panasonic WV-Q116 Ceiling Mount Bracket. It is specifically designed for mounting the Combination Camera WV-CS954 on a suspended (double) ceiling. The guide includes safety precautions, such as ensuring the ceiling can support approximately 2.9 kg and using the provided Fall Prevention Wire.
| Weight | 800 g (1.76 lbs) |
|---|---|
| Dimensions | 240 x 177 (D) mm |
| Operating Temperature | -10°C - +50°C |
This bracket is provided for the surface mounting of the Combination Camera WV-CS954.
Mount this bracket in a suspended ceiling having a minimum of 210 mm (8-9/32") clearance.
The ceiling board thickness to mount this bracket can be a maximum of 40 mm (1-37/64") in thickness.
