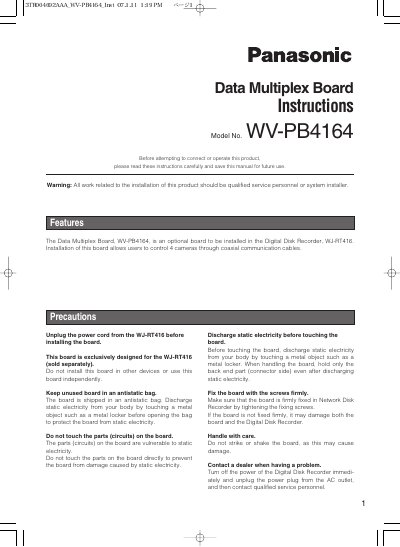

This manual introduces the features and functions of the data multiplex board, and provides detailed instructions on how to install the board and precautions.
The Panasonic WV-PB4164 is an optional Data Multiplex Board designed specifically for installation in the Digital Disk Recorder WJ-RT416. When installed, it enables users to control up to 4 cameras through coaxial communication cables. The board must be installed by qualified service personnel or system installers and is not intended for use independently or in other devices.
| Compatible Device | WJ-RT416 Digital Disk Recorder |
|---|---|
| Dimensions | 170 mm (W) x 120 mm (H) x 14 mm (D) |
| Weight | 110 g |
It is an optional board that allows users to control 4 cameras through coaxial communication cables.
No, the board is exclusively designed for the WJ-RT416 and should not be installed in other devices.
All work related to the installation should be performed by qualified service personnel or system installers.
