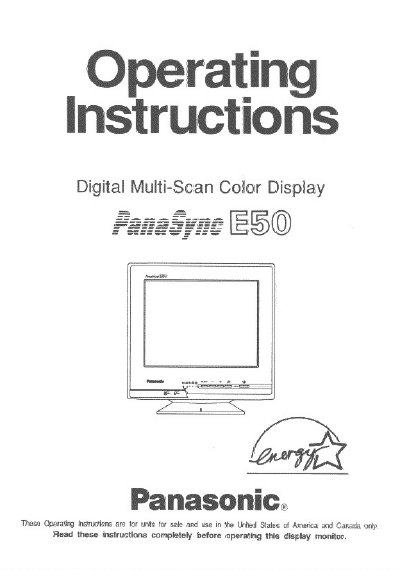

This document provides operating instructions and safety precautions for the Panasonic PanaSync E50, a 15-inch flat square CRT display. It covers installation requirements, power management features, and usage guidelines to ensure safe operation in residential or office environments.
The manual details the monitor's specifications, including its multi-scan capabilities compatible with Windows 95 Plug & Play, VESA DDC support, and energy-saving modes. It also explains how to use the front panel controls for adjusting image settings like contrast, brightness, and geometry.
| CRT Size | 15 inch Flat Square |
|---|---|
| Dot Pitch | 0.27 mm |
| Video Bandwidth | 86 MHz (Typical) |
| Resolution | 1,024 x 768 max. |
| Power Consumption (On) | 85 Watts |
| Operating Temperature | 32°F to 95°F |
The unit requires a UL and CSA labeled NEMA 5-15 style male plug with a CEE-22 female socket.
Users should keep the display unit as far away from other display units as possible to avoid image distortion or noise.
