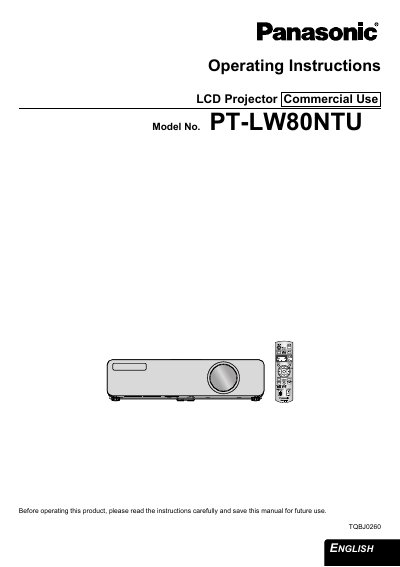

This document is the operating instructions manual for the PT-LW80NTU LCD projector, providing information on how to use the product and important safety notices.
This document serves as an instruction manual for Toshiba HV6FS Vacuum Circuit Breakers (Fixed Type) rated at 4.8 & 7.2kV voltage classes with fast closing capabilities. It covers applicable model numbers HV6FS-MU and HV6FS-ML, which utilize motor operation types.
| Rated Voltage | 7.2 kV, rms / 4.8 kV, rms |
|---|---|
| Impulse Withstand Voltage | 60 kV, crest |
| Rated Continuous Current | 630 A, rms |
| Rated Short-Circuit Breaking Current | 14 kA / 16 kA, rms |
| Opening Time | 8-25 msec |
| Weight (MU Type) | 24 kg |
The manual applies to HV6FS-MU and HV6FS-ML motor operation types.
The rated control voltage for closing/charging is 125 V DC.
