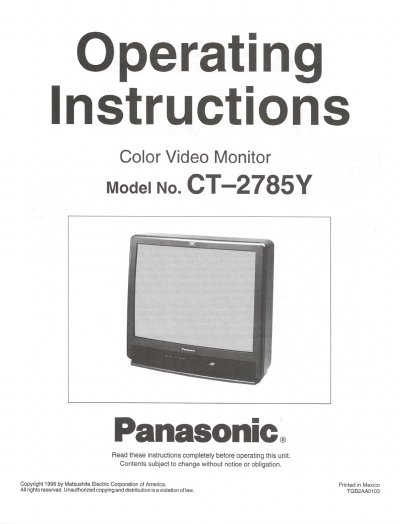

Panasonic CT-2785Y Color Video Monitor Operating Instructions

Brand: Panasonic
Category: Monitor
Document type: User Manual
Language: English
Pages: 20
File format: PDF
File size: 2.2 MB
Published: 07 August, 2012
Updated: 23 August, 2012
MD5 checksum: 5357C12695AE53794F22CD87131983FD
PDF: Panasonic CT-2785Y Color Video Monitor Operating Instructions PDF

About this manual

This document provides operating instructions for the Panasonic CT-2785Y color video monitor. It includes safety warnings regarding electric shock and ventilation, as well as setup guidelines for optimal viewing and component placement. The manual details how to connect external equipment like VCRs and audio amplifiers using the provided RCA and S-Video inputs.

What's inside

Safety Instructions
Specifications
Installation
Optional External Equipment Connections
Care and Cleaning
Location of Controls
Quick Reference Control Operation
Picture Adjustments

Specifications

Power Source	120V, 60Hz, AC
Video Input Jack	1V p-p, 75 ohm, phono jack type
Audio Input Jacks	500 mV rms 47K ohm
S-VHS Input Jack	S-Video (Y-C) Connector

Frequently asked questions

What type of power source is required?

The monitor requires a 120V, 60Hz, AC power source.

Does this monitor support S-Video input?

Yes, it features an S-Video (Y-C) Connector for S-VHS input.

Download PDF (2.2 MB)
