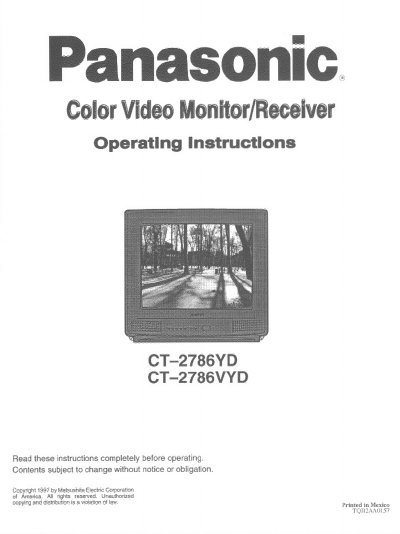

Panasonic CT-2786YD/CT-2786VYD Color Video Monitor Operating Instructions

About this manual

This document provides operating instructions for the Panasonic CT-2786YD and CT-2786VYD Color Video Monitor/Receiver. It includes important information regarding FCC compliance, safety warnings such as electric shock risks, and guidelines for proper installation and use of video game or computer displays to prevent permanent shadow images on the picture tube.

The manual details technical specifications including power requirements (120V, 60Hz), input/output jack types (BNC, RCA), and channel compatibility. It also outlines safety procedures for servicing, grounding antenna systems, and handling the equipment near water or unstable surfaces.

What's inside

• FCC Compliance
• Safety Instructions
• Video Game Display Caution
• Specifications
• Power Source
• Channel Compatibility
• Input Jacks
• Output Jacks
• Antenna Grounding
• Service Conditions

Specifications

Frequently asked questions

What happens if changes or modifications are made without approval?

Unauthorized substitutions may result in fire, electric shock, or other hazards.

What power source is required to operate this monitor?

The monitor must be operated from a 120V, 60Hz, AC power source.

How many total broadcast channels can this monitor display?

The monitor is capable of displaying a total of 181 channels.

What type of connectors are used for the video input jack?

The video input jack uses BNC connectors.
