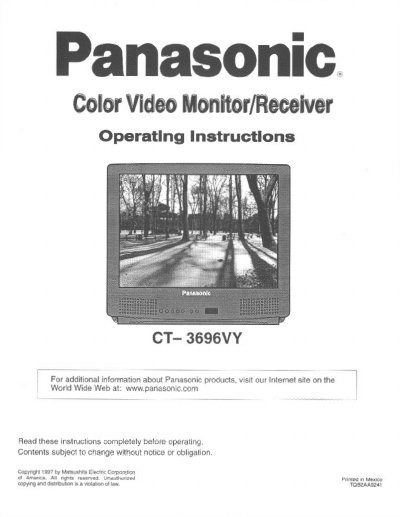

Panasonic CT-3696VY Color Video Monitor Operating Instructions

About this manual

This document provides operating instructions for the Panasonic CT-3696VY Color Video Monitor/Receiver. It details safety precautions, installation steps including antenna connections and power supply cord usage, and explains how to set up optional external equipment such as VCRs and cable boxes using infrared codes.

The manual covers various modes of operation including TV, PC, and DTV (DTV Mode), offering guidance on picture adjustments like color, tint, brightness, and sharpness. It also includes sections for audio settings, timer features, closed captioning options, and a comprehensive troubleshooting chart to assist users in resolving common issues.

What's inside

• Safety Instructions
• Installation
• Remote Control Functions
• Picture Adjustments
• Audio Adjustments
• TV/PC/DTV Modes
• Timer Features
• Troubleshooting

Specifications

Frequently asked questions

How many total channels can this receiver tune to?

The unit supports a total of 181 channels across VHF, UHF, and Cable bands.

What is the power source requirement for this monitor?

The monitor operates on 120V ac at 60Hz.

How many total channels can this monitor receive?

The monitor has a total channel capability of 181.

What is the viewable image size of the monitor?

The viewable image size is 36.0 inches.
