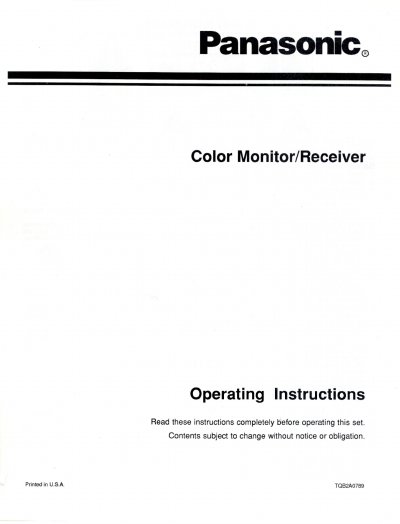

Panasonic CT-2584VY Color Monitor Operating Instructions

Brand: Panasonic
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 32
File format: PDF
File size: 1.3 MB
Published: 07 August, 2012
Updated: 23 August, 2012
MD5 checksum: 1BFA45987B41B8CAA5DE6975549F88A3
PDF: Panasonic CT-2584VY Color Monitor Operating Instructions PDF

About this manual

This manual provides operating instructions for the Panasonic CT-2584VY color monitor/receiver. It includes safety warnings, installation guidelines, and instructions for connecting optional external equipment such as video and audio sources.

What's inside

Safety Instructions
Specifications
Receiver Location
AC Power Supply Cord
Antenna/Cable Connections
Video Input
Control Operation
Channel Change Features
Picture Adjustments
Timer Features

Specifications

Power Source	120V 60Hz, AC
Channel Capability	155 channels
VHF Range	2-13
UHF Range	14-69
Video Input Jack	1V p-p 75 ohm, BNC connector
Audio Input Jack	500mV rms, RCA connector

Frequently asked questions

What power source is required to operate this monitor?

The unit must be operated from a 120V, 60Hz AC power source.

How many total channels can this receiver tune?

This television receiver has the capability to receive 455 total channels.
