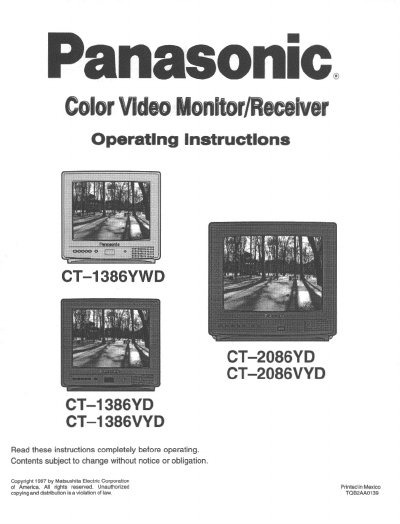

This document provides operating instructions for the Panasonic CT-1386YD Color Video Monitor/Receiver. It includes important safety warnings regarding electric shock, proper ventilation, and grounding, as well as precautions for using the device with computers and video games to prevent permanent shadow images on the picture tube.
The manual details the technical specifications of the monitor, including power requirements, input jacks for video and audio, and output jacks for monitoring and throughout connections. It also outlines the conditions under which servicing should be performed by qualified personnel and lists specific safety checks to be conducted after repairs.
| Power Source | 120V, 60Hz, AC |
|---|---|
| Video Input Jacks | (3) 1V p-p 75 ohm, BNC connectors |
| Audio Input Jacks | (3) 500mV rms, RCA connectors |
| Video Monitor Output Jack | BNC connector |
| Audio Monitor Output Jack | RCA connector |
| Video Throughout Jacks | (3) BNC connectors |
| Audio Throughout Jacks | (3) RCA connectors |
| S-Video Throughout Jacks | S-Video (Y-C) connectors |
Reduce brightness/contrast to a minimum, do not display fixed images for extended periods, and turn the power off when not in use.
It should be unplugged during a lightning storm or when left unattended and unused for long periods of time.
The receiver requires a 120V, 60Hz, AC power source.
