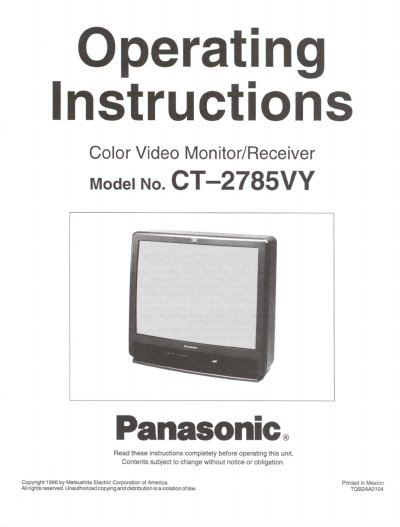

Panasonic CT-2785VY Color Video Monitor/Receiver Operating Instructions

Brand: Panasonic
Category: Television
Document type: User Manual
Language: English
Pages: 32
File format: PDF
File size: 2.4 MB
Published: 07 August, 2012
Updated: 23 August, 2012
MD5 checksum: A644C89E42AF5A013200E425F16DF17D
PDF: Panasonic CT-2785VY Color Video Monitor/Receiver Operating Instructions PDF

About this manual

This document provides operating instructions for the Panasonic CT-2785VY Color Video Monitor/Receiver. It includes safety warnings regarding electric shock and proper ventilation, as well as specifications for power source (120V, 60Hz) and channel capabilities (up to 181 channels). The manual details how to connect antenna/cable systems, video equipment, and audio amplifiers.

What's inside

Safety Instructions
Specifications
Installation
Monitor/Receiver Location
Optional External Equipment Connections
Battery Installation and Replacement
Antenna/Cable Connections
Location of Controls (Receiver/Remote)
Quick Reference Control Operation
Troubleshooting Chart

Specifications

Power Source	120V, 60Hz, AC
Channel Capability	181 channels
VHF Channels	2-13
UHF Channels	14-69
Video Input Jack	1V pp, 75 ohm, phono jack type

Frequently asked questions

What happens if I use the TV for video games or computers?

Extended use of fixed image program material can cause a permanent 'shadow image' on the picture tube.

Can I service this television receiver myself?

No, do not attempt to service it yourself as opening covers may expose you to dangerous voltage or other hazards.
