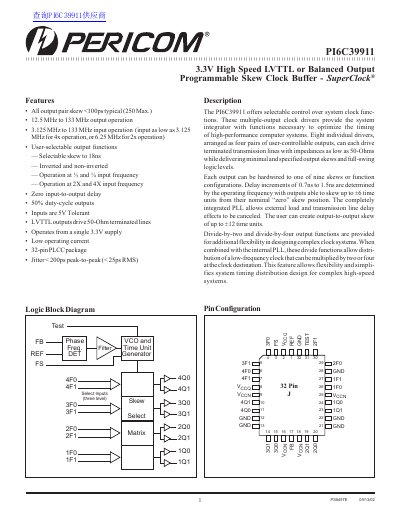

This document describes the features of PI6C39911, including all output pairs skew, output operation frequency, input operation frequency, user-selectable output functions, input-to-output delay, output duty cycle, input tolerance, LVTTL output driving 50-Ohm terminated lines, single 3.3V supply, low operating current, 32-pin PLCC package, jitter, etc.
The Pericom PI6C39911 is a 3.3V high-speed LVTTL or balanced output programmable skew clock buffer designed for high-performance computer systems. It features SuperClock technology with user-selectable output functions, including selectable skew up to 18ns, inverted and non-inverted operation, and frequency division or multiplication capabilities.
| Output Pair Skew | <100ps typical (250 Max.) |
|---|---|
| Output Operation Frequency | 12.5 MHz to 133 MHz |
| Input Operation Frequency | 3.125 MHz to 133 MHz |
| Supply Voltage | 3.3V |
| Package Type | 32-pin PLCC |
| Jitter | < 200ps peak-to-peak |
| Input Voltage Tolerance | 5V |
The maximum output pair skew is 250ps.
The device operates from a single 3.3V supply.
The PI6C39911 comes in a 32-pin PLCC package.
