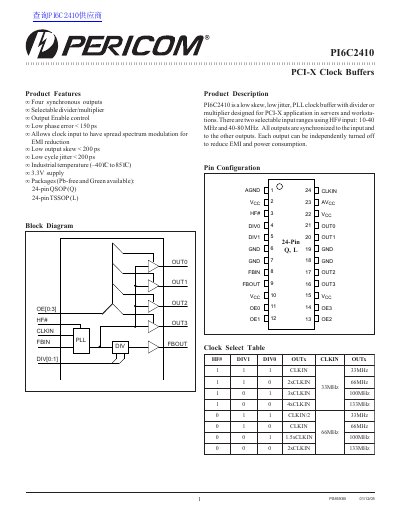

PI6C2410 is a low skew, low jitter, PLL clock buffer with divider or multiplier designed for PCI-X application in servers and workstations. It features four synchronous outputs, selectable divider/multiplier, output enable control, low phase error, spread spectrum modulation for EMI reduction, low output skew, low cycle jitter, etc.
The Pericom PI6C2410 is a low skew, low jitter, PLL clock buffer featuring selectable divider/multiplier functionality. It is specifically designed for PCI-X applications in servers and workstations, offering four synchronous outputs that can be independently enabled or disabled to reduce EMI and power consumption.
Key features include support for spread spectrum modulation for EMI reduction, low phase error of less than 150 ps, and low output skew and cycle jitter both under 200 ps. The device operates over an industrial temperature range from -40°C to +85°C with a 3.3V supply voltage.
| Low phase error | < 150 ps |
|---|---|
| Output skew | < 200 ps |
| Cycle jitter | < 200 ps |
| Operating temperature range | -40°C to +85°C |
| Supply voltage | 3.3V |
| Available packages | 24-pin QSOP, 24-pin TSSOP |
The device features two selectable input ranges using the HF# input: 10-40MHz and 40-80 MHz.
The device features four synchronous outputs.
