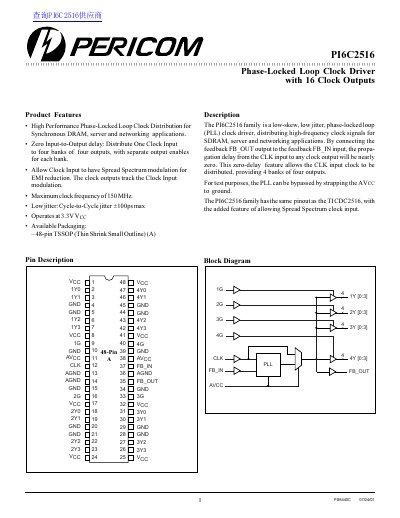

The Pericom PI6C2516 is a low-skew, low-jitter phase-locked loop (PLL) clock driver designed for synchronous DRAM, server, and networking applications. It distributes a single clock input to four banks of four outputs, allowing for zero input-to-output delay when the feedback loop is connected. The device supports spread spectrum modulation on the clock input for EMI reduction and operates at a maximum clock frequency of 150 MHz.
| Maximum clock frequency | 150 MHz |
|---|---|
| Operating temperature | 0 to 70 °C |
| Output current (High) | -12 mA |
The device provides 16 clock outputs, distributed as four banks of four outputs each.
Yes, the CLK input allows spread spectrum modulation for EMI reduction, and the outputs track this modulation.
