The document introduces a product named PS8382B, which is characterized by XXXXX.

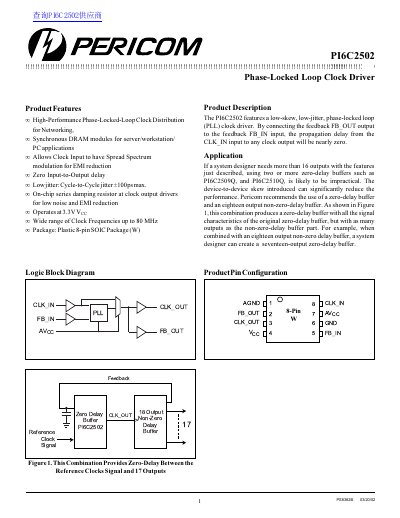

The Pericom PI6C2502 is a low-skew, low-jitter phase-locked loop (PLL) clock driver designed for networking, synchronous DRAM modules, and server/workstation/PC applications. It features zero input-to-output delay and allows for spread spectrum modulation to reduce EMI. The device operates at 3.3V and supports a wide range of clock frequencies up to 80 MHz.
| Supply Voltage | 3.3V |
|---|---|
| Max Clock Frequency | 80 MHz |
| Max Cycle-to-Cycle Jitter | 100ps |
| Package Type | 8-pin SOIC |
| Operating Temperature Range | -40 to +85 C |
It is used for networking and synchronous DRAM modules for server, workstation, and PC applications.
Yes, it allows the clock input to have spread spectrum modulation for EMI reduction.
The device supports a wide range of clock frequencies up to 80 MHz.
