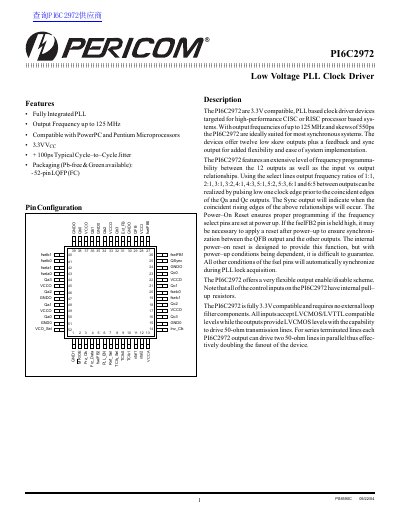

The PI6C2972 is a 3.3V compatible, PLL based clock driver device targeted for high-performance CISC or RISC processor based systems.
The PI6C2972 is a fully integrated PLL clock driver designed for CISC or RISC processor-based systems. It features twelve low skew outputs plus feedback and sync outputs, allowing for extensive frequency programmability between 1:1 and 6:5 ratios. The device operates at 3.3V with no external loop filter components required.
| Output Frequency | up to 125 MHz |
|---|---|
| Supply Voltage | 3.3V |
| Typical Cycle-to-Cycle Jitter | + 100ps |
| Package Type | 52-pin LQFP (FC) |
No, it requires no external loop filter components.
All inputs accept LVCMOS/LVTTL compatible levels.
