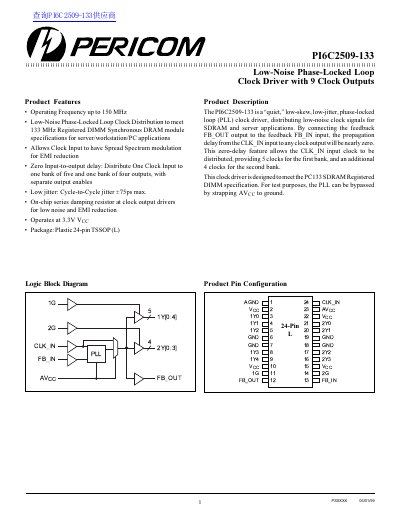

The Pericom PI6C2509-133 is a low-noise, phase-locked loop (PLL) clock driver featuring nine clock outputs. It is specifically designed to meet the PC133 SDRAM Registered DIMM specification and supports operating frequencies up to 150 MHz.
| Operating Frequency | 25 MHz - 150 MHz |
|---|---|
| Supply Voltage | 3.0V - 3.6V |
| Operating Temperature | 0°C to 70°C |
| Package Type | Plastic 24-pin TSSOP (L) |
| Number of Outputs | 9 Clock Outputs |
The device supports an operating frequency up to 150 MHz.
It provides nine clock outputs, distributed as five for one bank and four for another.
Yes, by strapping AVcc to ground, the PLL is bypassed and CLK_IN is buffered directly.
