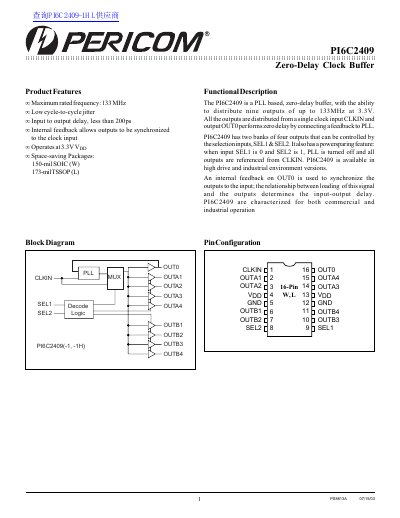

The PI6C2409 is a PLL-based, zero-delay buffer, with the ability to distribute nine outputs of up to 133MHz at 3.3V. All the outputs are distributed from a single clock input CLKIN and output OUT0 performs zero delay by connecting a feedback to PLL. PI6C2409 has two banks of four outputs that can be controlled by the selection inputs, SEL1 & SEL2. It also has a power-sparing feature: when input SEL1 is 0 and SEL2 is 1, PLL is turned off and all outputs are referenced from CLKIN. PI6C2409 is available in high drive and industrial environment versions. An internal feedback on OUT0 is used to synchronize the outputs to the input; the relationship between loading of this signal and the outputs determines the input-output delay. PI6C2409 are characterized for both commercial and industrial operation.
The PI6C2409 is a PLL-based, zero-delay clock buffer designed to distribute nine outputs of up to 133MHz at 3.3V. It features two banks of four outputs controlled by selection inputs SEL1 and SEL2, allowing for flexible clock distribution. The device includes a power-saving feature where the PLL can be turned off, referencing all outputs directly from the CLKIN input when specific selection inputs are set.
| Maximum rated frequency | 133 MHz |
|---|---|
| Input to output delay | less than 200ps |
| Operating voltage | 3.3V |
| Supply Voltage to Ground Potential | -0.5V to +7.0V DC |
| Storage Temperature | -65ºC to +150ºC |
| Maximum Soldering Temperature | 260ºC |
The maximum rated frequency is 133 MHz.
The device distributes nine outputs.
The device operates at 3.3V.
