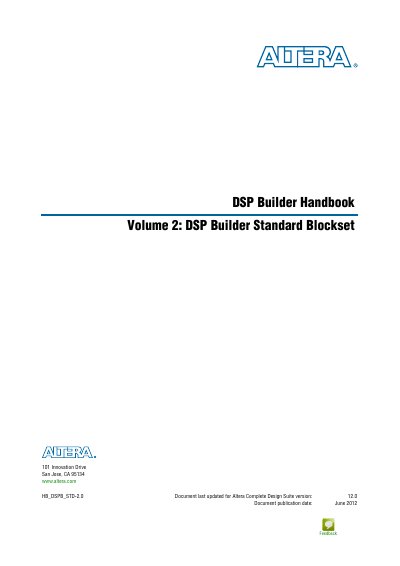

Altera DSP Builder Standard Blockset User Guide

About this manual

This document serves as a comprehensive user guide for the Altera DSP Builder Standard Blockset. It provides instructions on creating models using standard blocks such as sine waves, delays, and multiplexers within the Simulink environment. The guide explains how to simulate designs in both Simulink and HDL simulation modes before compiling them into Quartus II projects.

What's inside

• About DSP Builder
• Getting Started with Design Flow
• Design Rules and Procedures
• Using MegaCore Functions
• HIL (Hardware-in-the-Loop) Design
• Performing SignalTap II Logic Analysis
• Using the Interfaces Library
• Using Black Boxes for HDL Subsystems

Frequently asked questions

What is the document publication date?

The document was published in June 2012.

Which Quartus version does this manual support?

This manual is updated for Altera Complete Design Suite version 12.0.

Can MegaCore Functions be simulated in Simulink?

Yes, the guide includes instructions on simulating MegaCore Function Variations within the Simulink model.
