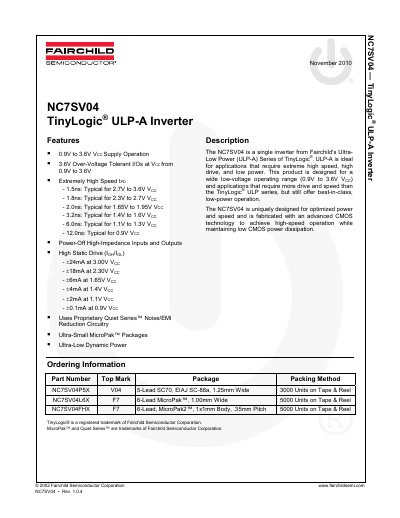

The NC7SV04 is a single inverter from Fairchild's Ultra-Low Power (ULP-A) Series of TinyLogic®. ULP-A is ideal for applications that require extreme high speed, high drive, and low power.
The NC7SV04 is a single inverter designed for applications requiring extreme high speed, high drive, and low power. It operates with a wide voltage range from 0.9V to 3.6V Vcc and features proprietary Quiet Series noise/EMI reduction circuitry.
| Supply Voltage Range | 0.9V to 3.6V Vcc |
|---|---|
| Typical Propagation Delay (2.7V to 3.6V) | 1.5ns |
| Typical Propagation Delay (0.9V) | 12.0ns |
| High Static Drive Current (+24mA) | +24mA at 3.00V Vcc |
| Operating Temperature Range | -40 to +85 °C |
The typical propagation delay is 1.5ns for Vcc between 2.7V and 3.6V.
The device operates with a Vcc supply voltage ranging from 0.9V to 3.6V.
The typical propagation delay is 12.0ns when the Vcc is between 0.9V and 1.3V.
The high static drive current is +24mA at 3.00V Vcc.
