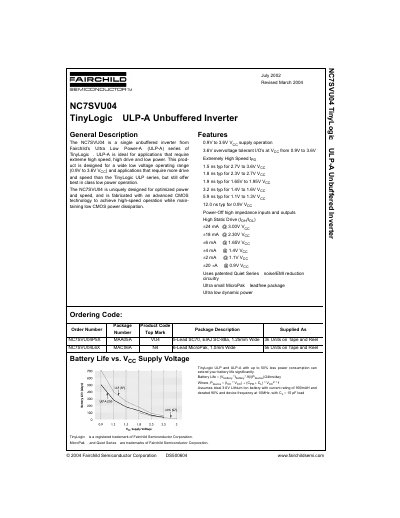

This datasheet describes the NC7SVU04, a single unbuffered inverter from Fairchild's TinyLogic ULP-A series. ULP-A is ideal for applications that require extreme high speed, high drive and low power. This product is designed for a wide low voltage operating range (0.9V to 3.6V VCC) and applications that require more drive and speed than the TinyLogic ULP series, but still offer best in class low power operation. The NC7SVU04 is uniquely designed for optimized power and speed, and is fabricated with an advanced CMOS technology to achieve high-speed operation while maintaining low CMOS power dissipation.
The NC7SVU04 is a single unbuffered inverter from the TinyLogic ULP-A series, designed for applications requiring extreme high speed, high drive, and low power. It operates with a wide low voltage supply range from 0.9V to 3.6V and is fabricated with advanced CMOS technology to maintain low power dissipation while achieving high-speed operation. Key features include patented Quiet Series noise/EMI reduction circuitry and ultra-small MicroPak leadfree packages.
| Supply Voltage Range | 0.9V to 3.6V |
|---|---|
| Propagation Delay (Typ) | 1.5 ns |
| High Static Drive (Ioh) | 424 mA |
| Operating Temperature Range | -65°C to +150°C |
| Free Air Operating Temperature | -40°C to +85°C |
| Input Capacitance | 2.0 pF |
| Output Capacitance | 45 pF |
The device operates with a supply voltage from 0.9V to 3.6V.
The NC7SVU04 is available in a 5-Lead SC70 package and a 6-Lead MicroPak package.
Yes, it uses patented Quiet Series noise/EMI reduction circuitry.
