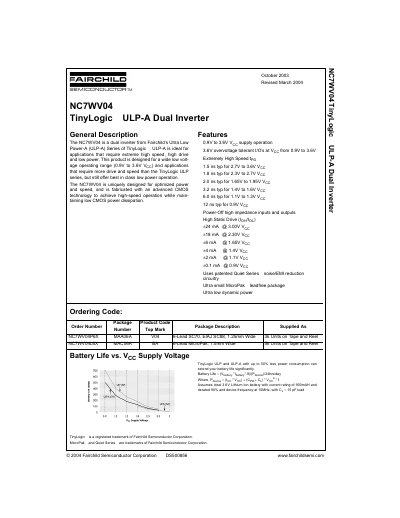

The NC7WV04 is a dual inverter from Fairchild's Ultra Low Power-A (ULP-A) Series of TinyLogic. ULP-A is ideal for applications that require extreme high speed, high drive and low power. This product is designed for a wide low voltage operating range (0.9V to 3.6V VCC) and applications that require more drive and speed than the TinyLogic ULP series, but still offer best in class low power operation. The NC7WV04 is uniquely designed for optimized power and speed, and is fabricated with an advanced CMOS technology to achieve high-speed operation while maintaining low CMOS power dissipation.
The NC7WV04 is a dual inverter designed for applications requiring extreme high speed, high drive, and low power. It operates over a wide voltage range of 0.9V to 3.6V and utilizes advanced CMOS technology with patented Quiet Series noise/EMI reduction circuitry.
The device offers two package options: the 6-Lead SC70 (MAA06A) and the 6-Lead MicroPak (MACO6A). Key electrical characteristics include typical propagation delays as low as 1.5 ns at 2.7V to 3.6V supply voltages and high static drive currents up to 424 mA.
| Supply Voltage Range | 0.9V to 3.6V |
|---|---|
| Typical Propagation Delay (2.7V-3.6V) | 1.5 ns |
| Typical Propagation Delay (0.9V) | 12 ns |
| High Static Drive Current (3.0V) | 424 mA |
| Operating Temperature Range | -65°C to +150°C (Storage) |
The device supports a supply voltage operation from 0.9V to 3.6V.
Yes, it uses patented Quiet Series noise/EMI reduction circuitry.
