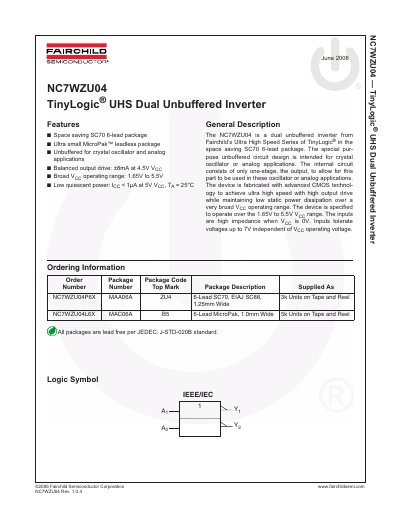

The NC7WZU04 is a dual unbuffered inverter from Fairchild's Ultra High Speed Series of TinyLogic® in the space saving SC70 6-lead package.
The NC7WZU04 is a dual unbuffered inverter from Fairchild's Ultra High Speed Series of TinyLogic devices. It is designed for space-saving applications using the 6-lead SC70 or MicroPak leadless package. The device features an internal one-stage output circuit intended specifically for crystal oscillator and analog applications.
| Package Type | SC70 6-lead or MicroPak leadless package |
|---|---|
| Operating Voltage Range | 1.65V to 5.5V |
| Quiescent Current (Max) | < 1µA at 5V |
| Output Drive Current (Max) | +8mA at 4.5V |
It is intended for crystal oscillator or analog applications due to its unbuffered circuit design.
The device is intended for crystal oscillator or analog applications.
The device operates over a supply voltage range of 1.65V to 5.5V.
